The internal hex Conical Connection combines a tight seal and high mechanical strength.
This tapered abutment connection offers high resistance to bending and rotational torque during a clinical function, which significantly reduces the possibilities of screw fracture or loosening. This increased stability of the abutment/implant interface is critical for the hard and soft tissues and thereby providing predictable and highly esthetic results.

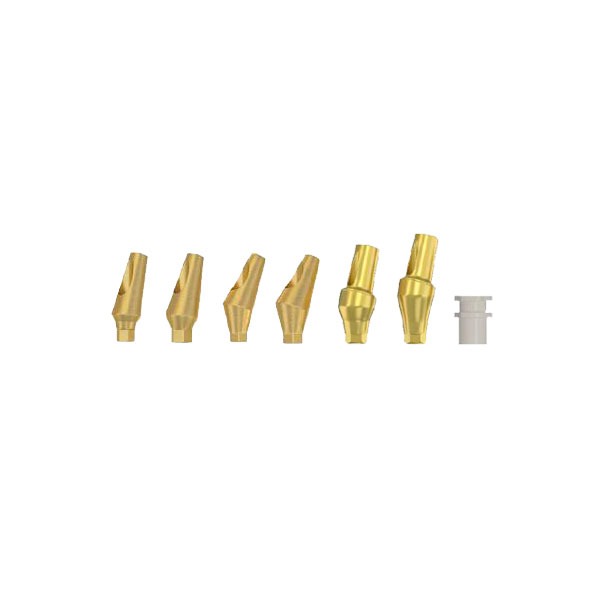

Conical Connection Angulated Abutments 15° NP
| Abutment | Height | Diametr | Code |
|---|---|---|---|
 |
9.0 mm | Ø 3.8 mm | ISCAA-NP |
Conical Connection Angulated Abutments 15° RP
| Abutment | Height | Diametr | Code |
|---|---|---|---|
 |
9.0 mm | Ø 3.8 mm | ISCAA-RP |
Conical Connection Angulated Abutments 15° NP

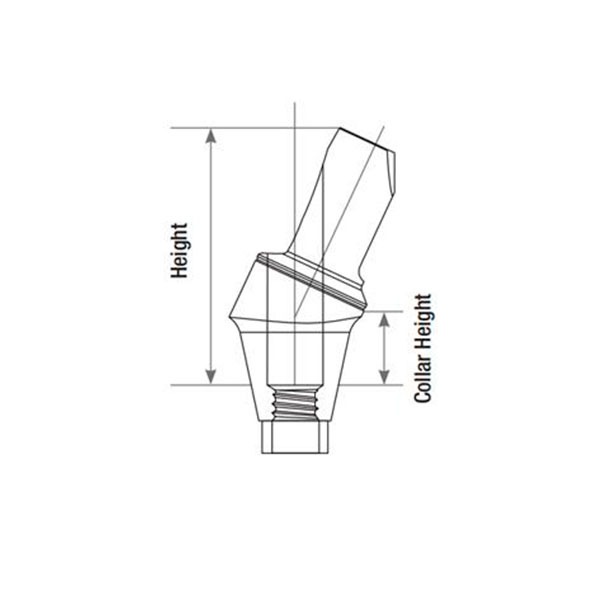

| Abutment | Height | Collar Height | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITAP-NB-NP1515M |
 |
12.0 mm | 3.0 mm | ITAP-NB-NP1530M |
Conical Connection Angulated Abutments 15° RP
| Abutment | Height | Collar Height | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITAP-NB-RP1515M |
 |
12.0 mm | 3.0 mm | ITAP-NB-RP1530M |
Conical Connection Angulated Abutments 25° NP
| Abutment | Height | Collar Height | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITAP-NB-NP2515M |
 |
12.0 mm | 3.0 mm | ITAP-NB-NP2530M |
Conical Connection Angulated Abutments 25° RP
| Abutment | Height | Collar Height | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITAP-NB-RP2515M |
 |
12.0 mm | 3.0 mm | ITAP-NB-RP2530M |
Plastic Cap Transfer
| Cap | Height | Cuff Height | Diametr | Code |
|---|---|---|---|---|
 |
10.0 mm | 6.0 mm | Ø 5.5 mm | ISPUTO |
Conical Connection Angulated Abutments 25° NP
| Abutment | Height | Diametr | Code |
|---|---|---|---|
 |
9.0 mm | Ø 3.8 mm | ISCAA25-NP |
Conical Connection Angulated Abutments 25° RP
| Abutment | Height | Diametr | Code |
|---|---|---|---|
 |
9.0 mm | Ø 3.8 mm | ISCAA25-RP |
