The internal hex Conical Connection combines a tight seal and high mechanical strength.
This tapered abutment connection offers high resistance to bending and rotational torque during a clinical function, which significantly reduces the possibilities of screw fracture or loosening. This increased stability of the abutment/implant interface is critical for the hard and soft tissues and thereby providing predictable and highly esthetic results.

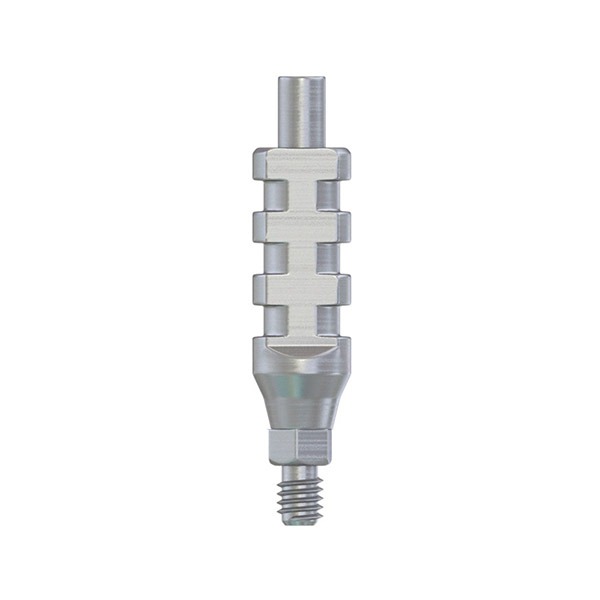

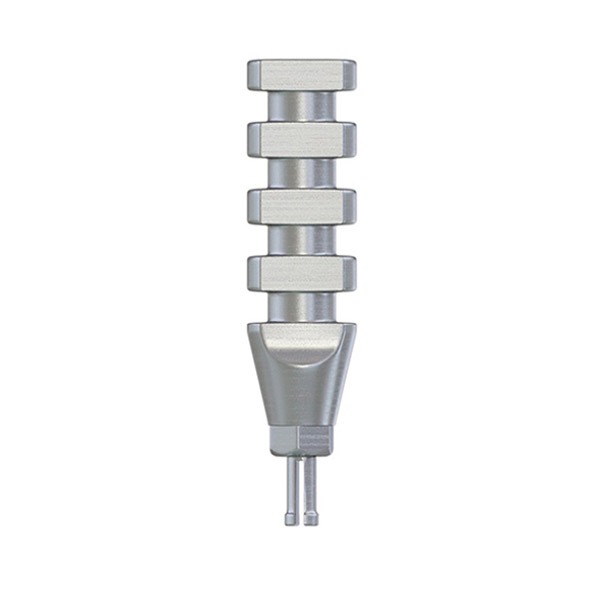

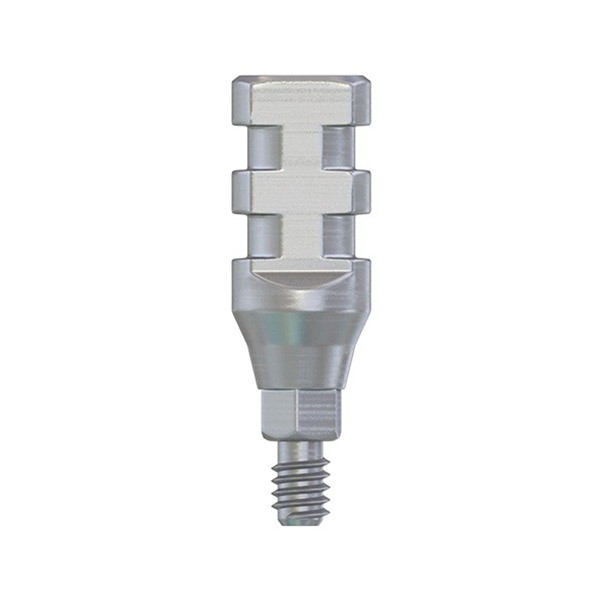

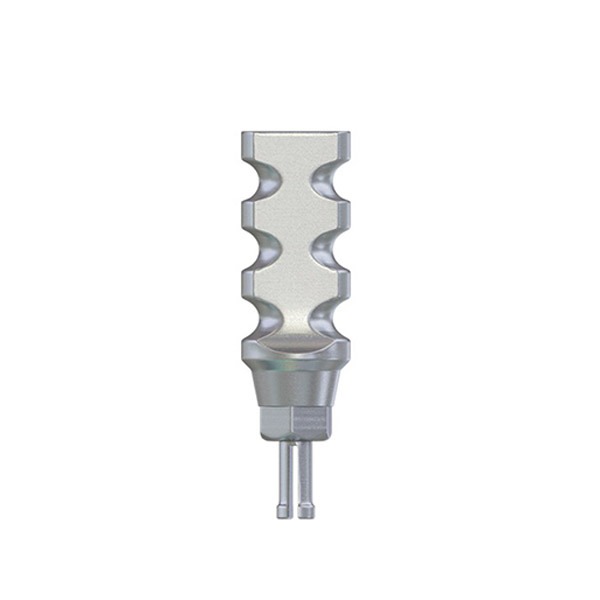

Conical Connection Transfer NP
| Transfer | Type | Diametr | Height | Code |
|---|---|---|---|---|
 |
Closed | Ø 5.0 mm | 14 mm | ITCS-NP |
 |
Open | Ø 5.0 mm | 22 mm | ITCL-NP |
 |
Click | Ø 5.0 mm | 9 mm | ISCLT9-NP |
 |
Click | Ø 5.0 mm | 15 mm | ISCLT15-NP |
Conical Connection Transfer RP
| Transfer | Type | Diametr | Height | Code |
|---|---|---|---|---|
 |
Closed | Ø 5.0 mm | 14 mm | ITCS-RP |
 |
Open | Ø 5.0 mm | 22 mm | ITCL-RP |
 |
Click | Ø 5.0 mm | 9 mm | ISCLT9-RP |
 |
Click | Ø 5.0 mm | 15 mm | ISCLT15-RP |

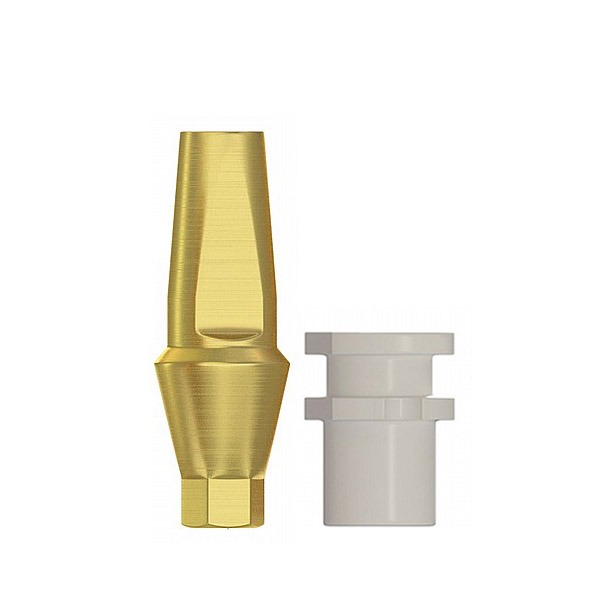

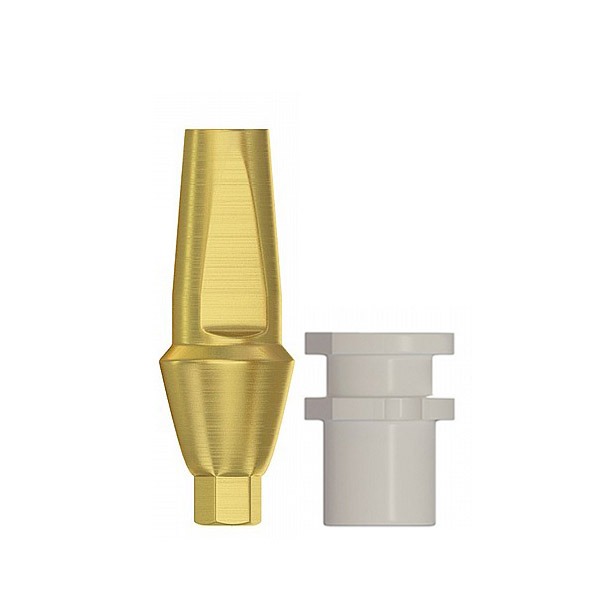

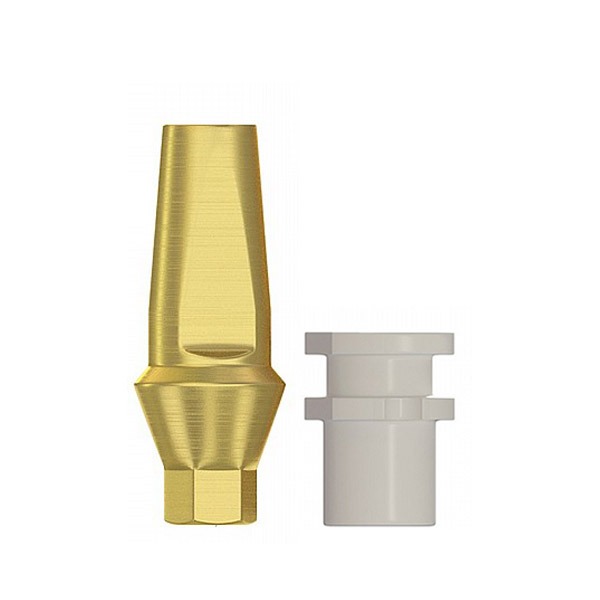

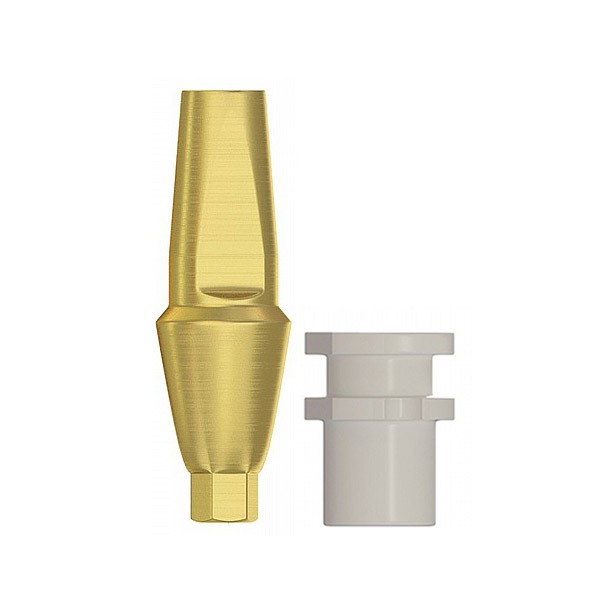

Straight Anatomic NB Abutments / Transfer NP
| Aburment | Height 1 | Height 2 | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITA-NB-NP15 |
 |
11.5 mm | 3.0 mm | ITA-NB-NP30 |
 |
13.0 mm | 4.5 mm | ITA-NB-NP45 |

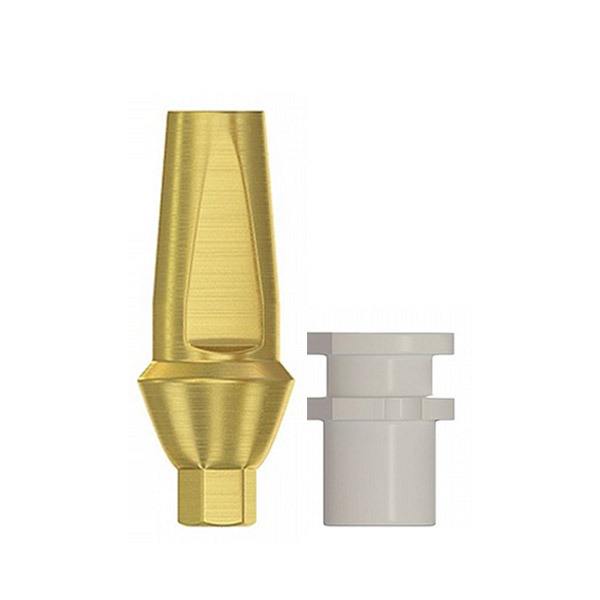

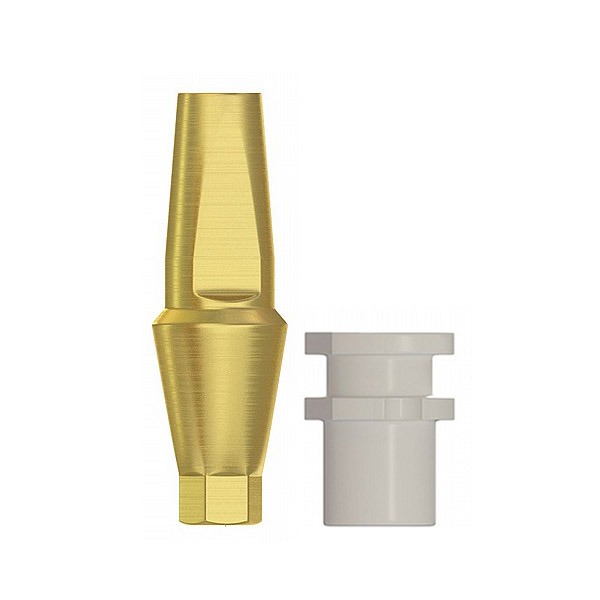

Straight Anatomic NB Abutments / Transfer RP
| Aburment | Height 1 | Height 2 | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITA-NB-RP15 |
 |
11.5 mm | 3.0 mm | ITA-NB-RP30 |
 |
13.0 mm | 4.5 mm | ITA-NB-RP45 |

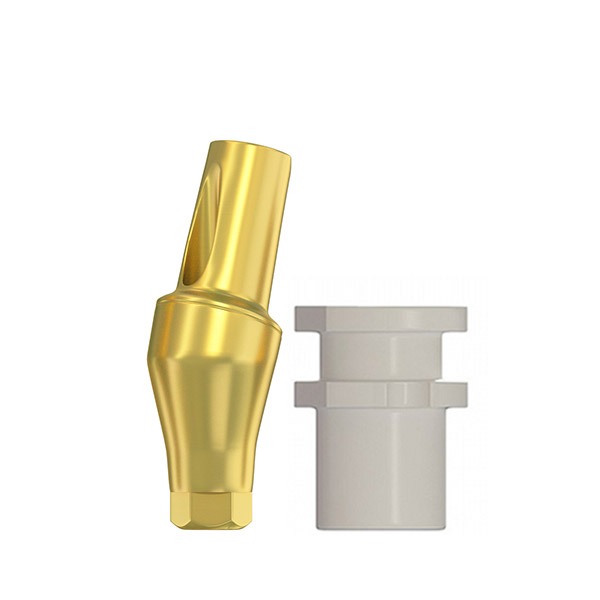

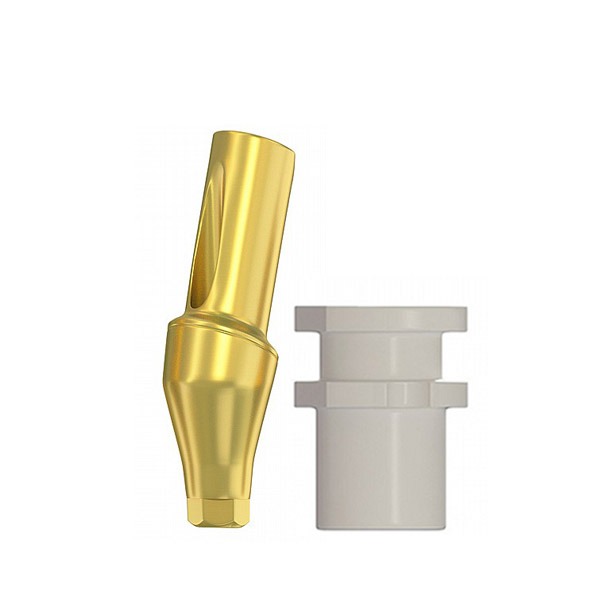

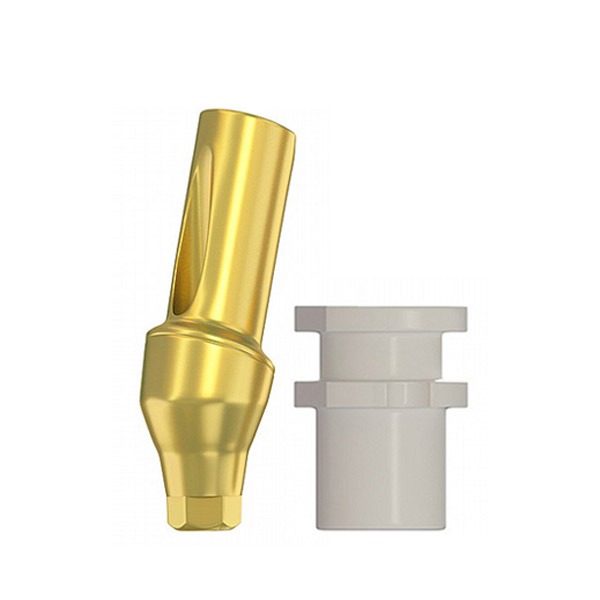

Conical Connection Angulated Abutments 15° NP
| Aburment | Height | Collar Height | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITAP-NB-NP1515M |
 |
12.0 mm | 3.0 mm | ITAP-NB-NP1530M |

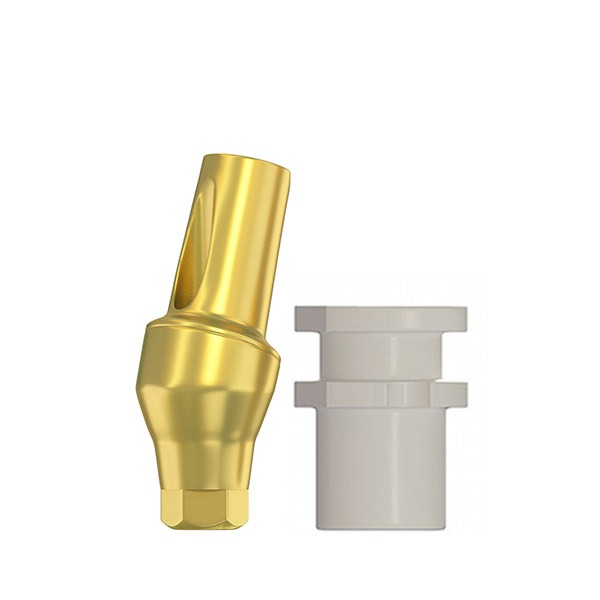

Conical Connection Angulated Abutments 15° RP
| Aburment | Height | Collar Height | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITAP-NB-RP1515M |
 |
12.0 mm | 3.0 mm | ITAP-NB-RP1530M |

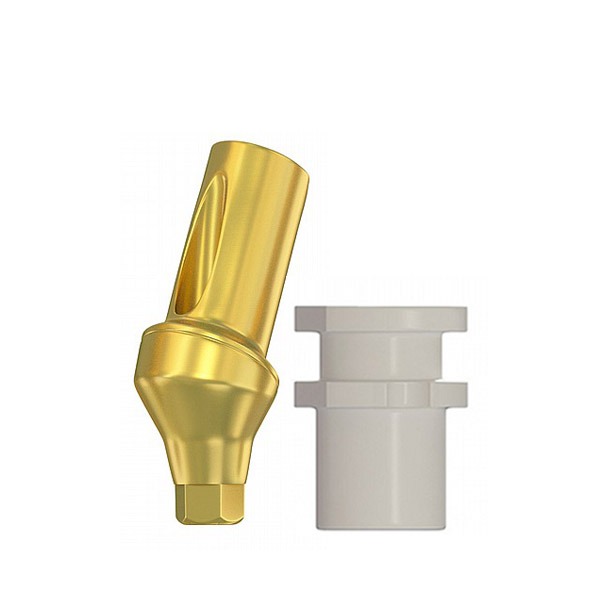

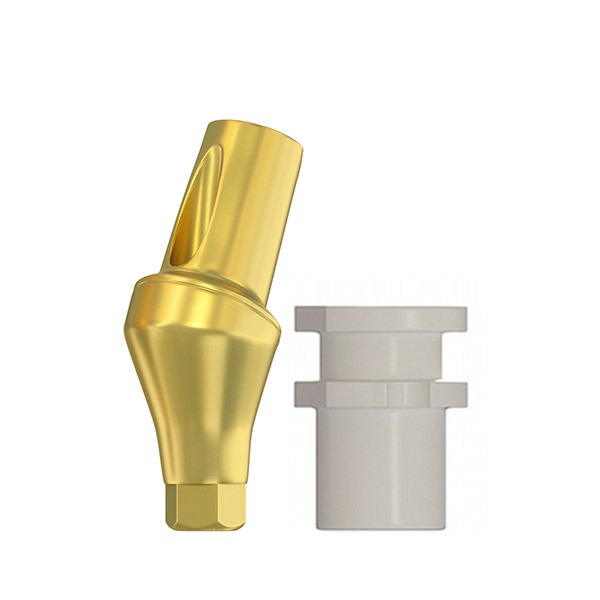

Conical Connection Angulated Abutments 25° NP
| Aburment | Height | Collar Height | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITAP-NB-NP2515M |
 |
12.0 mm | 3.0 mm | ITAP-NB-NP2530M |

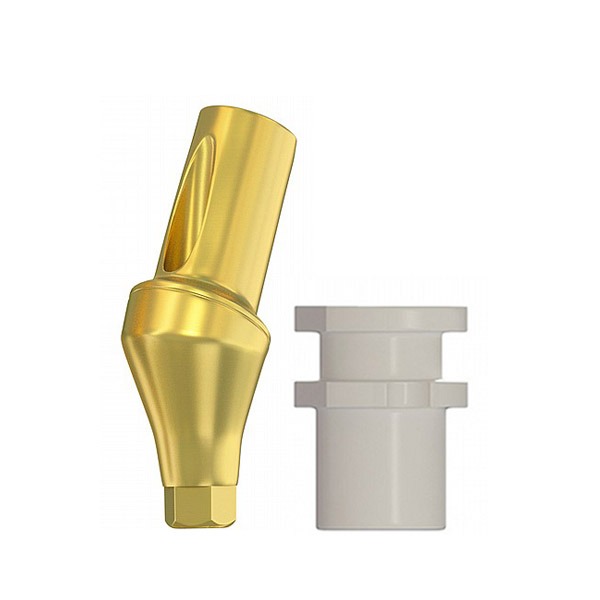

Conical Connection Angulated Abutments 25° RP
| Aburment | Height | Collar Height | Code |
|---|---|---|---|
 |
10.0 mm | 1.5 mm | ITAP-NB-RP2515M |
 |
12.0 mm | 3.0 mm | ITAP-NB-RP2530M |

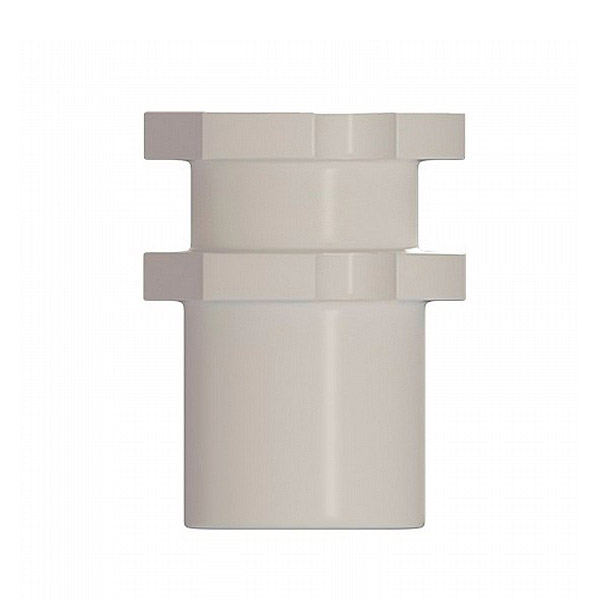

Plastic Cap Transfer
| Cap | Height | Cuff Height | Diametr | Code |
|---|---|---|---|---|
 |
10.0 mm | 6.0 mm | Ø 5.5 mm | ISPUTO |
