One-piece Implant

Description

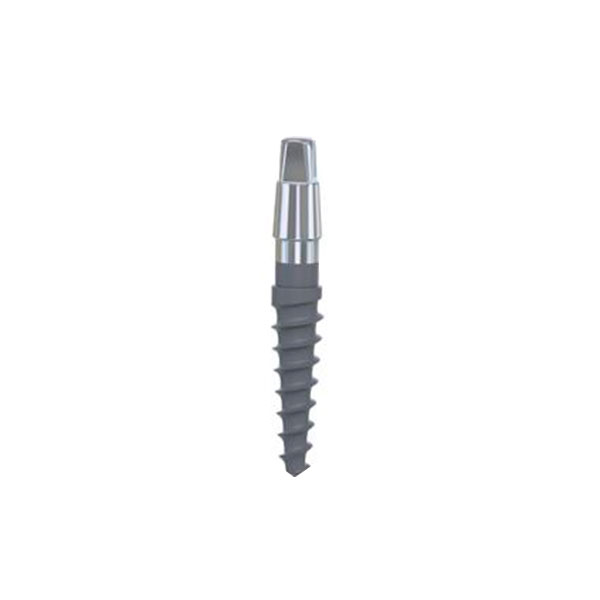

One Piece Implant — Monolithic Design for Simplified Protocols

The IDL One Piece Implant is a single-body dental implant that integrates the fixture and abutment into one continuous titanium component. This design eliminates the micro-gap between implant and abutment, reduces the number of surgical and prosthetic steps, and enables flapless placement in narrow alveolar ridges where two-piece implants would not fit.

Design Rationale

Conventional two-piece implants create a microscopic gap at the implant-abutment interface — a zone where bacterial colonization drives marginal bone loss over time. One Piece Implant eliminates this interface entirely. There is no abutment screw, no connection interface, and no micro-movement under occlusal load. The result is improved long-term soft-tissue health and reduced biological complications.

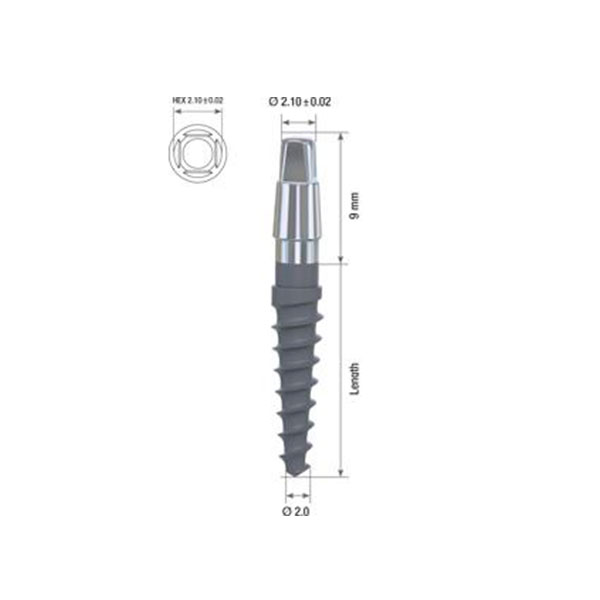

Geometry and Thread Design

The implant body features a tapered geometry with progressive threads designed for self-tapping insertion. The coronal portion transitions into the transgingival abutment with a polished finish optimized for soft-tissue contact. Thread profile provides high primary stability in sites where bone width is a constraint, such as mandibular incisor regions and post-extraction sites with thin alveolar walls.

Surgical Protocol

One Piece Implant is specifically designed for flapless surgery. The single-stage placement reduces surgical trauma, shortens chair time, and eliminates the second-stage exposure procedure required by conventional two-piece systems. Immediate provisionalization is possible in cases meeting primary stability requirements, typically expressed by insertion torque above 35 Ncm.

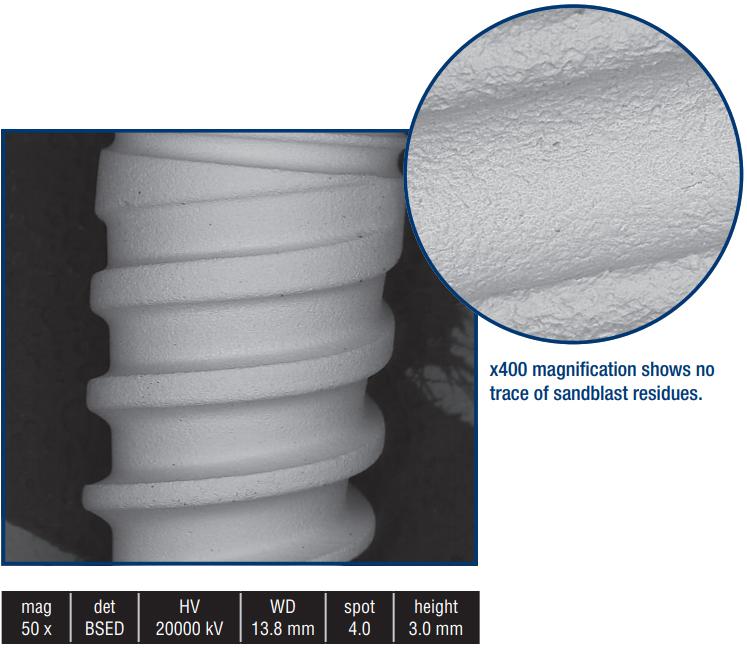

Hydrophilic RBM Surface

The osseointegrating portion of the implant features Hydrophilic RBM surface treatment. The hydrophilic finishing accelerates cellular attachment in the first hours after placement, which is particularly important for single-stage protocols where the implant is loaded earlier than in two-stage procedures. The polished transgingival zone remains smooth to reduce plaque retention and support healthy peri-implant tissue.

Material

Manufactured from commercially pure titanium Grade 4 in accordance with ASTM F67. Grade 4 provides the biocompatibility required for extended transgingival contact, where the implant surface remains in direct continuous contact with soft tissue and oral bacteria.

Clinical Indications

– Narrow alveolar ridges where two-piece implants cannot be placed
– Mandibular anterior region, lateral incisors
– Flapless surgery protocols
– Immediate loading with temporary restoration
– Single-tooth restorations in the aesthetic zone with limited bone
– Cases where reducing surgical trauma is a clinical priority

Available Sizes

Diameters: 3.0, 3.3, 3.75 mm
Lengths: 10, 11.5, 13, 16 mm

Clinical Evidence

One Piece Implant demonstrates consistent survival rates at 95% in published long-term clinical follow-ups. The absence of the implant-abutment interface eliminates a significant source of peri-implantitis, contributing to stable marginal bone levels over time.

Regulatory Compliance

CE-marked (MDR). Manufactured in Israel under ISO 9001:2015 and ISO 13485:2016.

Delivered sterile. Dedicated drivers for One Piece placement sold separately — see the Surgical Kit & Tools category.

From $65 per unit. B2B volume pricing available.
