The GBR System is comprised of bone screws and bone plates that are used for bone fixation surgery.
The GBR System is comprised of bone screws and bone plates that are used for bone fixation surgery. The bone screws and plates are notreusable. The bone screws are composed of the Titanium alloy (ASTM F136) and the bone plates are composed of the pure Titanium (ASTM F67 Grade 1). The screws are offered in following range; diameter (1.4, 1.6 mm) and length (6.0, 8.0, 10.0 mm). Also, the tip of screw has single type: the self-drilling and self-tapping available type and the type that require the pre-drilling (Surgeon’s option). The bone plate is offered in 0.1 mm thickness and in length 36 mm × 22 mm. Each device is provided non-sterile. Steam sterilization is Recommendeded.

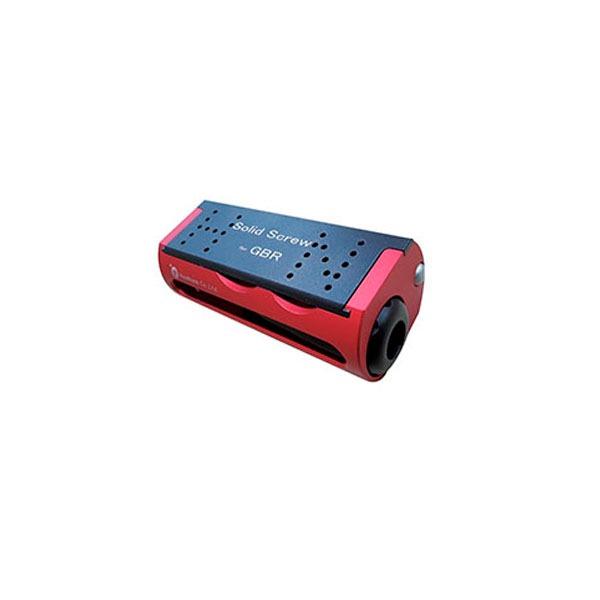

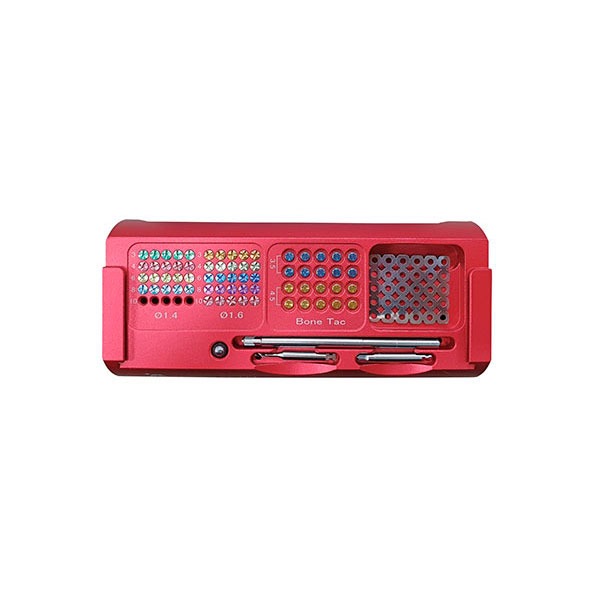

Solid Screw Kit for GBR
| Product | Code |
|---|---|
| Solid Screw Kit for GBR | HNSMK-100 |

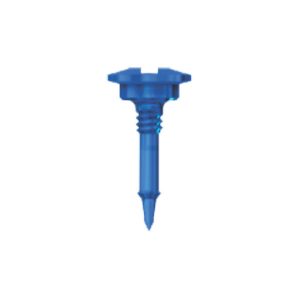

GBR SD-Mesh-Tack Content Bone Tack
| Type | Size | Code |
|---|---|---|
 |
Ø 2.0 mm / 3.5 mm | SDB-140-035 |
 |
Ø 2.0 mm / 5.0 mm | SDB-140-050 |
GBR Fixation Screw
| Type | Lenght | Ø 1.4 mm | Ø 1.6 mm |
|---|---|---|---|
 |
3.0 mm | SBS-140-030 | SBS-160-030 |
 |
4.0 mm | SBS-140-040 | SBS-160-040 |
 |
6.0 mm | SBS-140-060 | SBS-160-060 |
 |
8.0 mm | SBS-140-080 | SBS-160-080 |
 |
10.0 mm | SBS-140-100 | SBS-160-100 |
| Type | Product | Code |
|---|---|---|
 |
Screw Handle | SH-V10 |
 |
Screw Holder (Manual) | SHM-V10 |
 |
Screw Holder (Hand-Piece) | SHH-V10 |
 |
Bone Tac Handle | BTH-V10 |
 |
Bone Tac Holder | BTHD-V10 |
 |
Pilot Drill Ø 1.0 | GPD10 |
 |
Titanium Mesh | TM001 |
