Temporary Abutment

$ 5$ 19

Сategory: Hex Prosthetics

Description

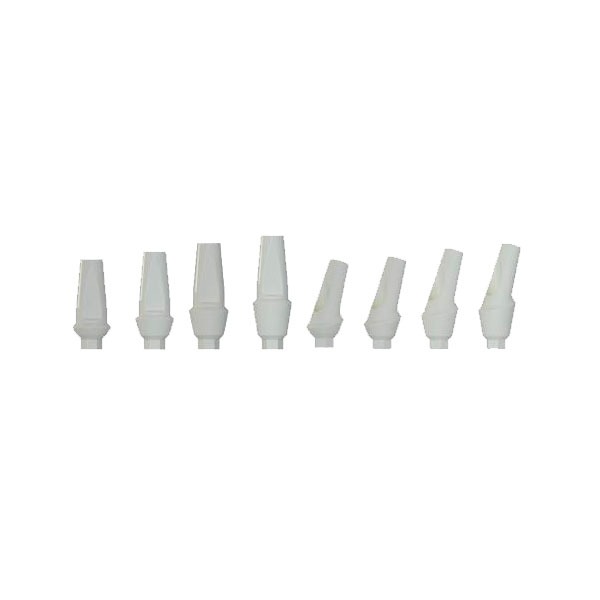

PEEK Abutments – can be easily customized according to the case specifics.

PEEK (Polyether Ether Ketone) Abutments designed as a provisional abutment, PEEK abutment can be placed at the first stage of the surgery, to form the gingiva, while allowing the immediate restoration of the patient’s aesthetic area, without compromising osseointegration in any way. PEEK is a bio-friendly plastic, almost as durable as the titanium, but with a smoother surface and can be easily polished and shaped providing a highly aesthetic temporary restoration that lasts for a long time. PEEK or Temporary Titanium Abutment is an excellent biomaterial choice for clinical results. IDL Aesthetic line dental products are made of proven, biomaterials that offer superior imaging properties and performance benefits over alternative materials. All products, engineered for biocompatibility, safety, and bio-stability, featuring a proven history of clinical results and regulatory approval.

  • Ability to be sterilized without degradation in mechanical properties or biocompatibility.
  • Compatibility with X-ray, MRI and CT imaging without producing artifacts.
  • Excellent mechanical properties such as stiffness and durability similar to the titanium.
  • High compressive strength.
  • Proven hard and soft tissue biocompatibility.
  • Natural color for excellent aesthetics.
  • The metal-free solution eliminates ions exchange in the mouth.

* Regular Platform for Implants 3.5-6.0
* Narrow Platform for Implant 3.0

Straight Abutment Peek Anatomic

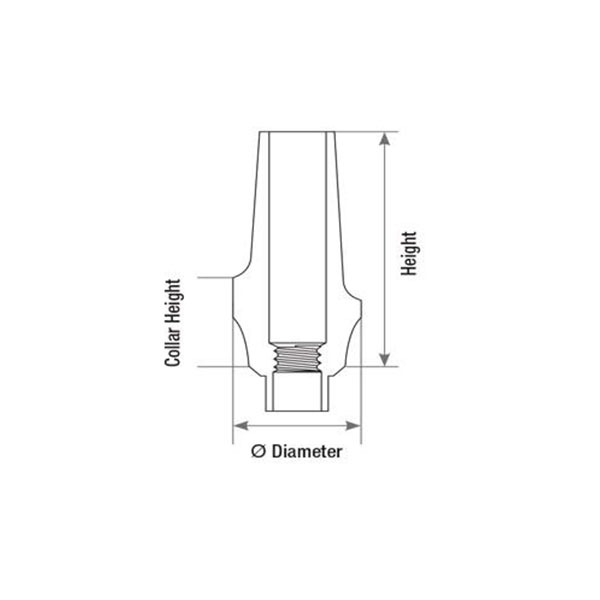

Abutment Height Collar Height Diametr Code
10.5 mm 1.0 mm Ø 4.8 mm ISPSA1
11.5 mm 2.0 mm Ø 4.8 mm  ISPSA2
12.5 mm 3.0 mm Ø 4.8 mm ISPSA3
13.0 mm 4.0 mm Ø 4.8 mm  ISPSA4

Angulated Abutment Peek Anatomic 15°

Abutment Height Collar Height Diametr Code
9.0 mm 1.0 mm Ø 4.8 mm ISPAA1
10.0 mm 2.0 mm Ø 4.8 mm  ISPAA2
11.0 mm 3.0 mm Ø 4.8 mm  ISPAA3
12.0 mm 4.0 mm Ø 4.8 mm  ISPAA4

Angulated Abutment Peek Anatomic 25°

Abutment Height Collar Height Diametr Code
9.0 mm 1.0 mm Ø 4.8 mm ISPAA25-1
10.0 mm 2.0 mm Ø 4.8 mm  ISPAA25-2
11.0 mm 3.0 mm Ø 4.8 mm  ISPAA25-3
12.0 mm 4.0 mm Ø 4.8 mm  ISPAA25-4

Straight Abutment Peek Sholder

Abutment Height Collar Height Diametr Code
10.5 mm 1.0 mm Ø 4.8 mm ISPSS-1

Temporary Titanium Abutment Hex

Abutment Height Diametr Code
9.0 mm Ø 4.5 mm ITTA-1

Temporary Titanium Abutment Rotational

Abutment Height Diametr Code
9.0 mm Ø 4.5 mm ITTA-R

Screw for Fixation of Internal Hex Abutments

Screw Height Material Platform Code
5.1 mm Titanium Narrow 2.0 ISISC-N
5.1 mm Titanium Regular IBLSC
5.1 mm Titanium Regular ISISC
