Castable Abutment

$ 11$ 21

Сategory: Hex Prosthetics

Description

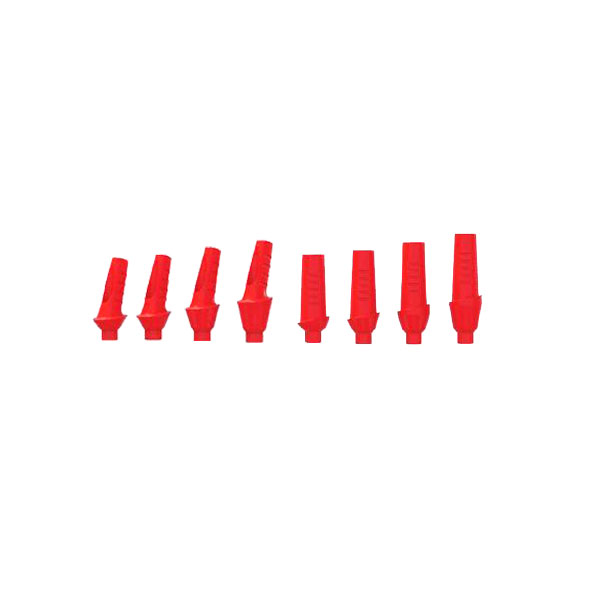

UCLA Casting abutments with a full-body or press-fit plastic sleeve on a metal base.

The plastic material burns without residues or ashes inside the furnace and used to construct custom shape abutments and structures. Two types of connection are available:

  • Anti-rotational (Hexagon) – for custom casting prosthetic restorations on a single implant or multiple implants
  • Rotational (Cylindrical) – for custom casting prosthetic restorations – only on multiple implant structures. UCLA’s are used for aesthetic restorations when tissue is limited.

IDL offers a wide assortment of high-quality castable abutments, ranging from straight, angulated, hex, rotational, Chrome Cobalt base, Titanium base, Mild, Conical Connection and more…

Straight Abutment Castable Anatomic

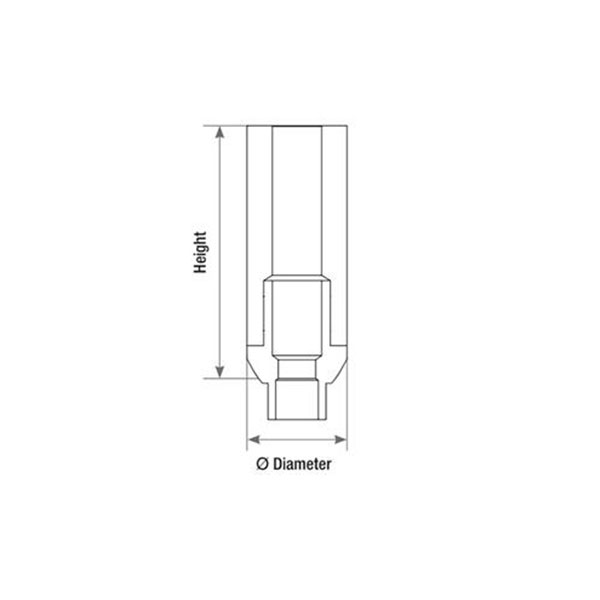

Abutment Height Colar Height Diametr Code
9.5 mm 1.0 mm Ø 4.8 mm ISACH01
10.5 mm 2.0 mm Ø 4.8 mm ISACH02
11.5 mm 3.0 mm Ø 4.8 mm ISACH03
12.5 mm 4.0 mm Ø 4.8 mm ISACH04

Angulated Abutment Castable Anatomic 15°

Abutment Height Colar Height Diametr Code
8.5 mm 1.0 mm Ø 4.8 mm ISAC15-1
9.5 mm 2.0 mm Ø 4.8 mm ISAC15-2
10.5 mm 3.0 mm Ø 4.8 mm ISAC15-3
11.5 mm 4.0 mm Ø 4.8 mm ISAC15-4

Angulated Abutment Castable Anatomic 25°

Abutment Height Colar Height Diametr Code
8.5 mm 1.0 mm Ø 4.8 mm ISAC25-1
9.5 mm 2.0 mm Ø 4.8 mm ISAC25-2
10.5 mm 3.0 mm Ø 4.8 mm ISAC25-3
11.5 mm 4.0 mm Ø 4.8 mm ISAC25-4

Straight Abutment UCLA Plastic Castable

Abutment Height Connection Diametr Code
9.5 mm Hex (Narrow 2.0) Ø 3.5 mm ISSACH9
9.5 mm Hex Ø 4.0 mm ISPAH9
10.5 mm Rotational Ø 4.8 mm ISACH9

Straight Abutment UCLA Milled Castable

Abutment Height Connection Diametr Code
9.5 mm Hex Ø 4.0 mm ISPAH-M
9.5 mm Rotational Ø 4.0 mm ISACH-M

Straight Abutment Plastic Castable CoCr base

Abutment Height Connection Diametr Code
11.0 mm Hex Ø 4.3 mm ICAMH
11.0 mm Rotational Ø 4.3 mm ICAMN

Straight Abutment Plastic Castable Titanium base

Abutment Height Connection Diametr Code
11.0 mm Hex Ø 4.3 mm ISAMH
11.0 mm Rotational Ø 4.3 mm ISAMN

Straight Abutment Plastic Castable CoCr base

Abutment Height Connection Diametr Code
11.0 mm Hex (Narrow 2.0) Ø 4.3 mm INAMH
11.0 mm Rotational (Narrow 2.0) Ø 4.3 mm INAMN
