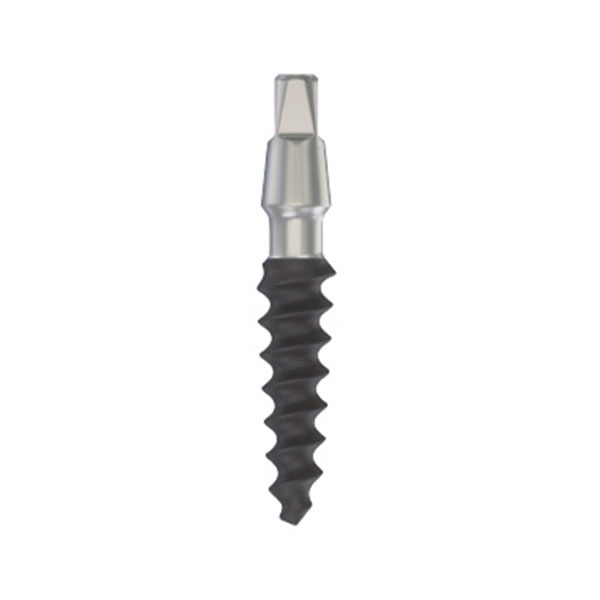

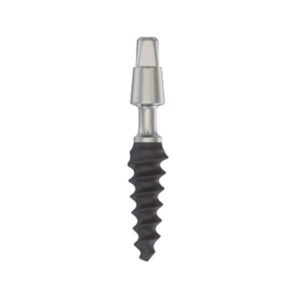

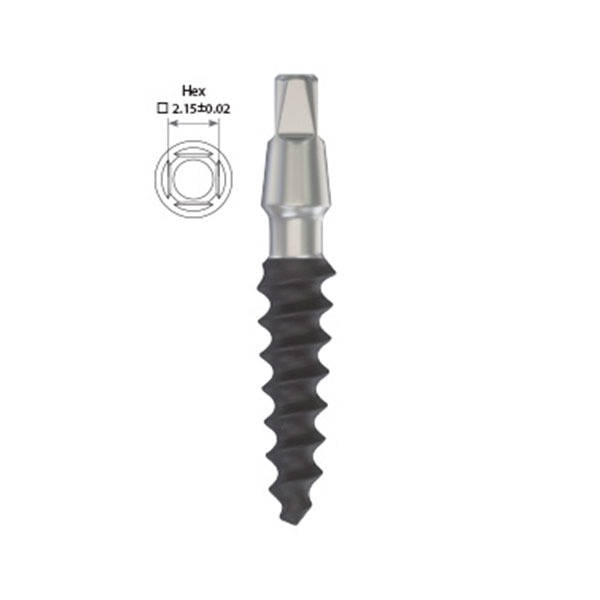

Compressive Non Flexible Implant

$ 62

Сategory: Implants, New Arrival


IDL Compressive Non Flexible Implant brings simplicity and convenience and allows a single-stage restoration protocol, while saving time, reducing trauma and delivering the aesthetics your patients desire.

Indicated for multiple unit restorations with immediate loading in the Maxilla & Mandible with an adequate bone tissue. Available in a variety of lengths and diameters: 3.3, 3.75 , 4.2 and 5.0 diameter implants, with lengths ranging from 6 , 8 , 11.5 , 13 and 16 mm. Designed for placement in the limited tooth spacing of the laterals and central incisors, with a bendable neck allowing to adjust the abutment slope angle up to 17°. The special design of the compressive threads creates a very high bone to implant contact along the implant body. Can be used with caution to create single restorations in the frontal area in cases of bone width deficit.

All IDL Implants implants are made of titanium alloy Ti-6Al-4V ELI, in accordance with ASTM-F136-02. All IDL Compressive Non Flexible Implant undergo RBM surface treatment.

IDL Compressive Non Flexible Implant Features:

  • Special Compressive threads.
  • Immediate loading.
  • Adjustable abutment slope angle.

Clinical Advantages:

  • Simple placement & prosthetic procedure.
  • Bone condensation design.
  • No pumping effect.

Resorbable Blast Media (RBM) Treatment:

The surface treatment is based on high-speed particle blasting, using the resorbable bioceramics – hydroxiapatite (HAP) material. The surface is cleaned and etched from calcium particles with the organic acid of low concentration. This doesn’t change the titanium surface pattern while achieving the uniform surface and homogenous pore diameter and larger BIC. HAP is the resorbable material, often used for synthetic bone grafting. It’s completely dissolved and replaced by the new bone formations. Cleaner Implant surface – eliminates the risk of leaving contamination debris after blasting.

Compressive MC Short Neck non-bendable Implant Sizes Table:

Lenght Ø 3.3 Ø 3.75 Ø 4.2 Ø 5.0
6.0 mm IMC 0638 IMC 0642
8.0 mm IMC 0838 IMC 0842
10.0 mm IMC 1033 IMC 1038 IMC 1042 IMC 1050
11.5 mm IMC 1133 IMC 1138 IMC 1142 IMC 1150
13.0 mm IMC 1333 IMC 1338 IMC 1342 IMC 1350
16.0 mm IMC 1633 IMC 1638 IMC 1642 IMC 1650
