Hex Connection Analog

Hex Connection Analog

$10

The laboratory analog is an unreplaceable prosthetic component in the implant dentistry.

SKU: N/A Category:

Description

It is necessary for precise duplication of the implant position on the technical model. When producing the IDL analogs, we use only the highest quality raw materials that are available worldwide – for lab analogs it is surgical-grade NiCr Stainless Steel. IDL manufactures analogs on the last generation’s newest CNC 6 axis machines with a digital laser 3D marking technology. This process allows us to obtain genuine precision and incredible accuracy of the product and minimizes the errors in the creation of a dental prosthesis.

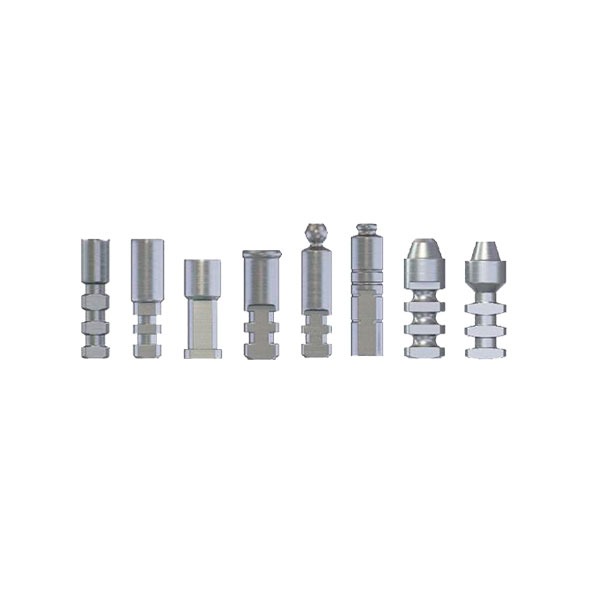

Analogs

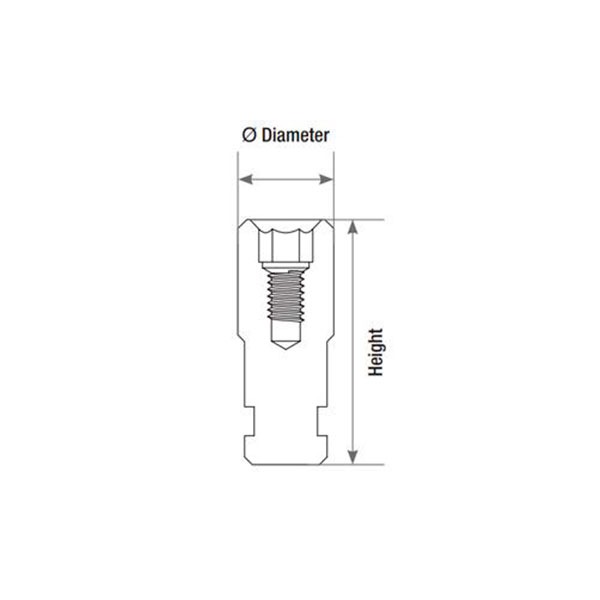

AnalogTypeDiametrHeightCode
Analog Narrow Planform 2.0Ø 3.0 mm12 mmISIA 300
Regular Analog Standard PlatformØ 3.75 mm12 mmISIA 375
Short-body Analog Standard PlatformØ 3.75 mm9 mmISIA-US
Loc-in Abutment AnalogØ 3.75 mm10 mmLOC-AN
Ball Attachment AnalogØ 3.75 mm15 mmISBA370
IDL-Lock AnalogØ 4.4 mm14 mmEQ-AN
One-Piece Implant AnalogØ 3.75 mm19 mmIAD375
Wide-body AnalogØ 5.0 mm12 mmISIA 500
Premium Multi Unit AnalogØ 5.0 mm12 mmISAFMU-K
Next-Gen Multi Unit AnalogØ 5.0 mm12 mmISAFMU

Additional information

Variations

Analog Narrow Planform 2.0, Diametr: Ø 3.0 mm, Height: 12 mm, Regular Analog Standard Platform, Diametr: Ø 3.75 mm, Height: 12 mm, Short-body Analog Standard Platform, Diametr: Ø 3.75 mm, Height: 9 mm, Loc-in Abutment Analog, Diametr: Ø 3.75 mm, Height: 10 mm, Ball Attachment Analog, Diametr: Ø 3.75 mm, Height: 15 mm, IDL-Lock Analog, Diametr: Ø 4.4 mm, Height: 14 mm, One-Piece Implant Analog, Diametr: Ø 3.75 mm, Height: 19 mm, Wide-body Analog, Diametr: Ø 5.0 mm, Height: 12 mm, Premium Multi Unit Analog, Diametr: Ø 5.0 mm, Height: 12 mm, Next-Gen Multi Unit Analog, Diametr: Ø 5.0 mm, Height: 12 mm
