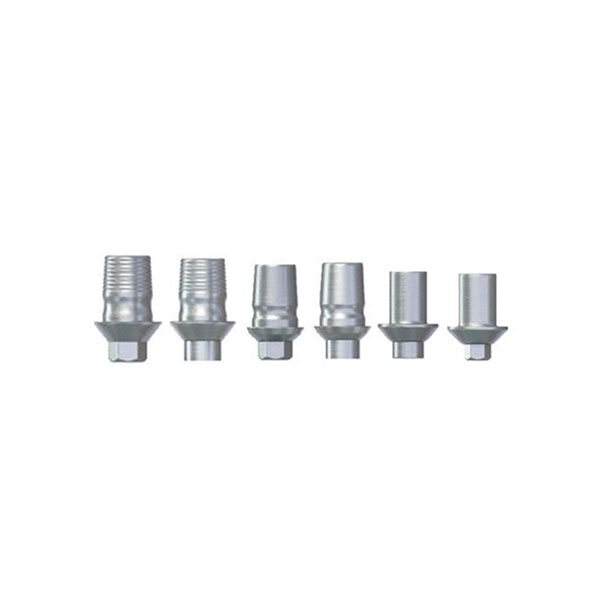

The Ti-Base for individual abutments.
The Ti-Base for individual abutments or screw-retained crown/bridge serves as a connector between the implant and its final restoration, enabling CAD/CAM customized solutions, with customized anatomic contours, emergence profile and margin placement to provide precession and excellent esthetic reults.
Titanium CAD/CAM Abutments are superior to all prefabricated abutments on the market. They can be customized and finely tuned to reflect the customer’s specific needs. Platforms are compatible with Zimmer, Implant Direct, ADIN, AlphaBio, MIS, AB, Cortex, etc. Made from: Titanium Ti-6AL-4V-ELI.
Advantages:
- Customized shape and emergence profile.
- Control over the cement gap.
- Optimized path of insertion.
- High convenience in the restoration.
- Platform: 3.75mm standard.
- Connection: Hex 2.45mm.
Ti-Base M-type Ø 4.3 mm

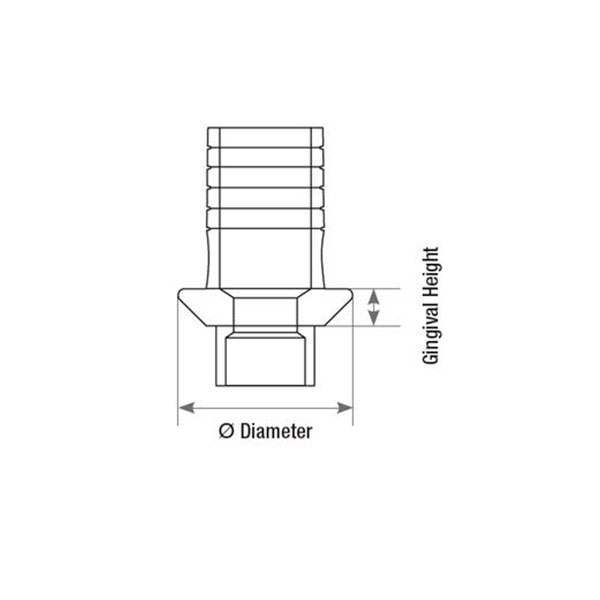

| Abutment | Type | Gingival Height | Ø mm Diametr | Code |
|---|---|---|---|---|
 |
Standart | 0.5 mm | 4.0 mm | TB-MIS1 |
 |
Rotational | 0.5 mm | 4.0 mm | TB-MIS2 |
For use with MIS Seven Folder.
Ti-Base AB-type
| Abutment | Type | Gingival Height | Ø mm Diametr | Code |
|---|---|---|---|---|
 |
Standart | 0.5 mm | 4.3 mm | TB-AB1 |
 |
Rotational | 0.5 mm | 4.3 mm | TB-AB2 |
For use with Alpha-Bio Folder – compatible with Sirona’s L Blocks.
Ti-Base Universal Type
| Abutment | Type | Gingival Height | Ø mm Diametr | Code |
|---|---|---|---|---|
 |
Hex Narrow 2.0 | 0.5 mm | 3.75 mm | TB-U3 |
 |
Standart | 0.5 mm | 4.25 mm | TB-U1 |
 |
Rotational | 0.5 mm | 4.25 mm | TB-U2 |
For use with Amanc Folder Girrbach Ceramill CAD-CAM system.
