Next-Gen Multi Unit

$5 – $80

Сategory: Hex Prosthetics

Description

The Next-Gen Multi-Unit system provides a fresh look on the screw-retained prostheses solutions, based on the customers’ feedback and common cases (for example, multiple unparallel placed implants).

This Next Generation Multi-Unit system comprises a full range of sizes and angulations with a wide prosthetic product selection. You will receive an excellent result with no additional items needed – all as a consequence of careful and thoughtful design. The core idea is to keep it simple, reliable, and aesthetically pleasing.

Material: (Ti6Al4V ELI), abutments are TiN coated. The TiN coating has been proven itself with improved friction and a higher surface scratch resistance. IDL’s Multi-Unit kits are a ready-to-use solution that includes all pieces required for any procedure. IDL Next-Gen Multi-Unit is available in 2 connection platforms: ø 2.42 & ø 2.0 mm.

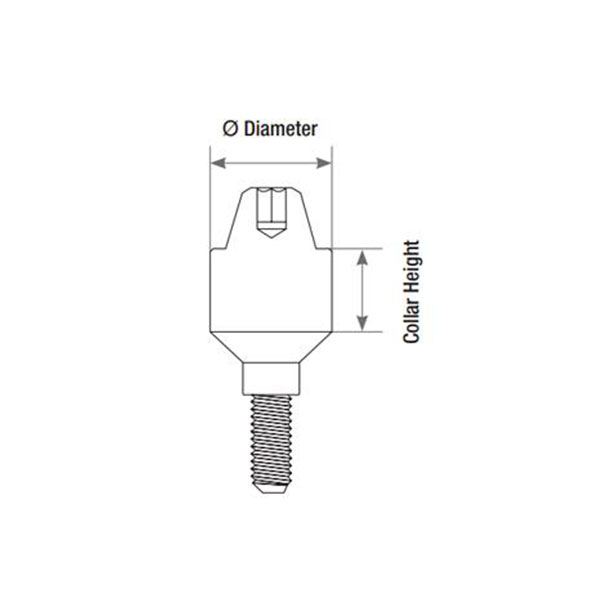

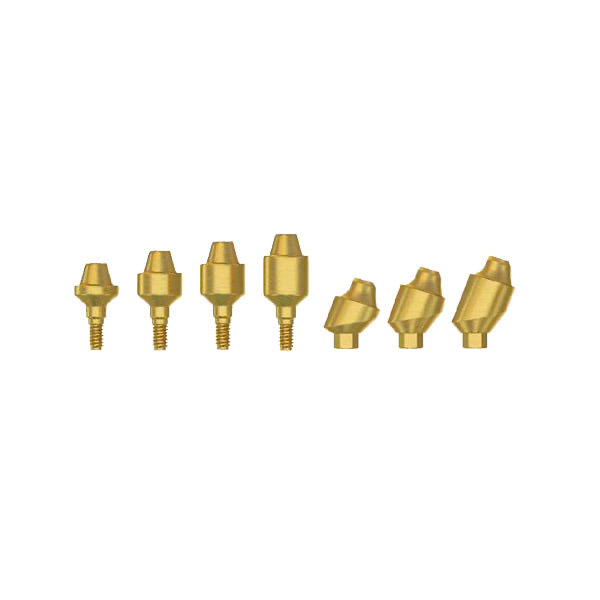

Straight Multi-Unit Next-Gen Abutment

Multi-Unit Height Lenght Code
1.0 mm 8.5 mm IMUS-10
2.0 mm 9.5 mm IMUS-20
3.0 mm 10.5 mm IMUS-30
4.0 mm 11.5 mm IMUS-40

Angulated Multi-Unit Next-Gen Abutment 17°

Multi-Unit Height 1 Height 2 Code
1.0 mm 2.0 mm IGAMU-1710
2.0 mm 3.0 mm IGAMU-1720
3.0 mm 4.0 mm IGAMU-1730

Angulated Multi-Unit Next-Gen Abutment 30°

Multi-Unit Height 1 Height 2 Code
1.0 mm 2.0 mm IGAMU-3010
2.0 mm 3.0 mm IGAMU-3020
3.0 mm 4.0 mm IGAMU-3030

Angulated Multi-Unit Next-Gen Abutment 45°

Multi-Unit Height 1 Height 2 Code
1.0 mm 4.0 mm IGAMU-4510

MUA Next-Gen Content Accsessories Table

Product Type Height Diametr Code
Long Transfer Screw 12.0 mm Ø 2.0 mm MU-S-LT
Short Transfer Screw 9.0 mm Ø 5.0 mm MU-S-ST
Open Transfer 9.0 mm Ø 5.0 mm MU-S-OT
Titanium Analog 8.5 mm Ø 5.0 mm MU-S-AN
Healing Cap 5.0 mm Ø 5.0 mm MU-S-HC
Titanium Sleeve Abutment 9.0 mm Ø 5.0 mm MU-S-TS
Castable Sleeve Abutment 9.0 mm Ø 5.0 mm MU-S-SP
Snap-on Closed Transfer 11.0 mm Ø 4.75 mm MU-S-PT
Scan Post Abutment 6.0 mm Ø 5.0 mm SP-DS2
Ti-Base for Multi-Unit 4.5 mm Ø 4.9 mm TB-DS3
Ball Attachment Connector 2.5 mm Ø 5.0 mm MU-BAT
Fixation Long Screws 5.1 mm Ø 1.72 mm MU- S-MX
Fixation Short Screws 2.5 mm Ø 1.72 mm MU- S-FX
Metal Position Holder 12.8 mm Ø 1.72 mm MUIH

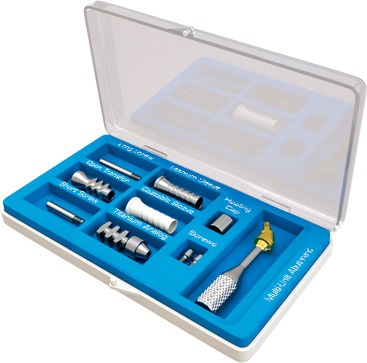

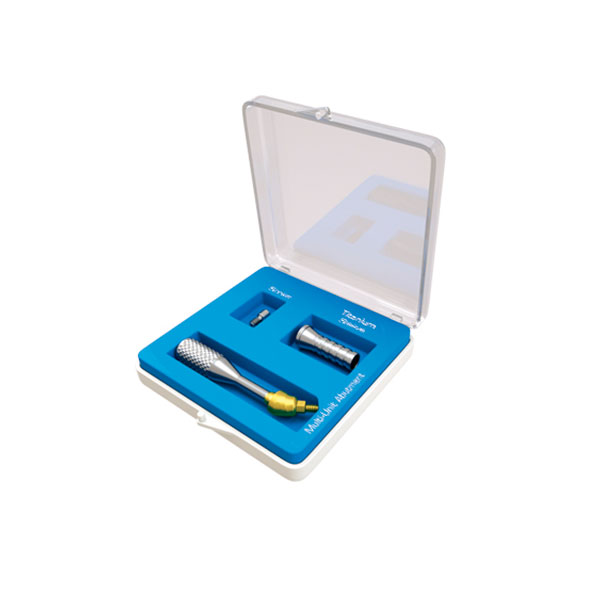

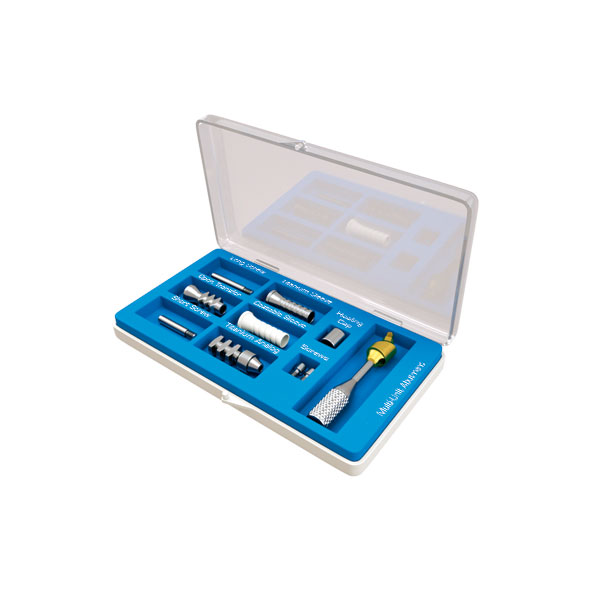

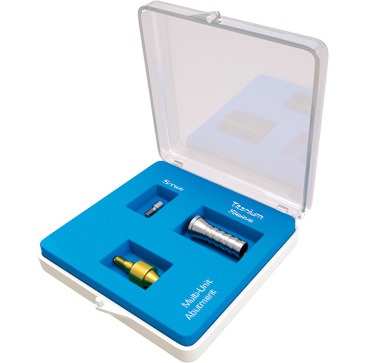

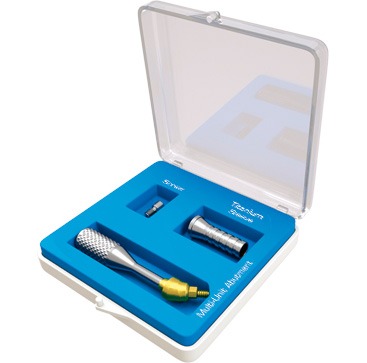

Straight Multi-Unit Next-Gen Kit

Height Lenght Code
1.0 mm 8.5 mm IPMUS-10
2.0 mm 9.5 mm IPMUS-20
3.0 mm 10.5 mm IPMUS-30
4.0 mm 11.5 mm IPMUS-40

Angulated MUA Next-Gen 17° Kit

Height 1 Height 2 Code
1.0 mm 2.0 mm IPAMU-1710
2.0 mm 3.0 mm IPAMU-1720
3.0 mm 4.0 mm IPAMU-1730

Angulated MUA Next-Gen 30° Kit

Height 1 Height 2 Code
1.0 mm 2.0 mm IPAMU-3010
2.0 mm 3.0 mm IPAMU-3020
3.0 mm 4.0 mm IPAMU-3030

Angulated MUA Next-Gen 45° Kit

Height 1 Height 2 Code
1.0 mm 4.0 mm IPAMU-4510

MUA Next-Gen Straight Basic Kit

Height Lenght Code
1.0 mm 8.5 mm IBMUS-10
2.0 mm 9.5 mm IBMUS-20
3.0 mm 10.5 mm IBMUS-30
4.0 mm 11.5 mm IBMUS-40

MUA Next-Gen Angulated Basic Kit

Angle Height Code
17° 1.0 mm IBAMU-1710
17° 2.0 mm IBAMU-1720
17° 3.0 mm IBAMU-1730
30° 1.0 mm IBAMU-3010
30° 2.0 mm IBAMU-3020
30° 3.0 mm IBAMU-3030
45° 1.0 mm IBAMU-4510
