Straight Titanium

Straight Titanium

$5$11

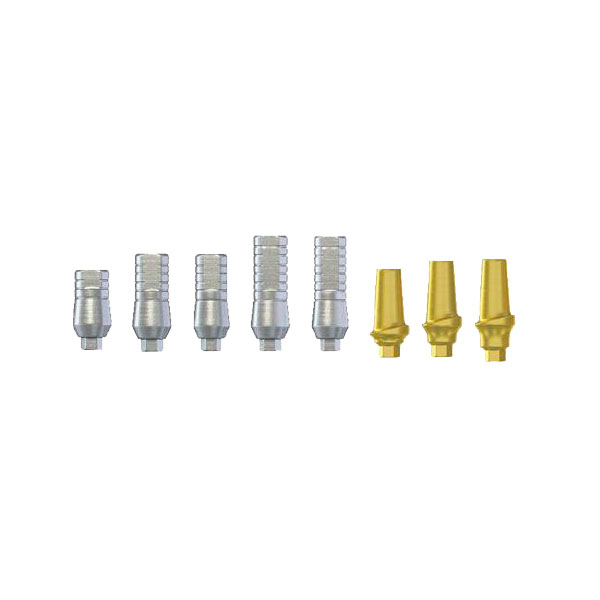

Used for cemented single and multiple-unit restorations, IDL abutments enhance the aesthetics of dental implant restoration.

SKU: N/A Category:

Description

All IDL Abutments are made from the same Eli-Grade 23 titanium, that is used in implants production. This material provides incredible strength and durability, along with long-term resistance to corrosive forces of the intra-oral area.

Straight Abutment Narrow Platform 2.0

AbutmentHeightDiametrCode
9.0 mmØ 3.8 mmISTAS9
11.0 mmØ 3.8 mmISTAS11

Straight Abutment Standard Platform

AbutmentHeightDiametrCode
5.0 mmØ 4.6 mmISTA5
9.0 mmØ 4.6 mmISTA9
11.0 mmØ 4.6 mmISTA11

Straight Abutment Wide Body

AbutmentHeightDiametrCode
9.0 mmØ 5.5 mmISTWA9
11.5 mmØ 5.5 mmISTWA12

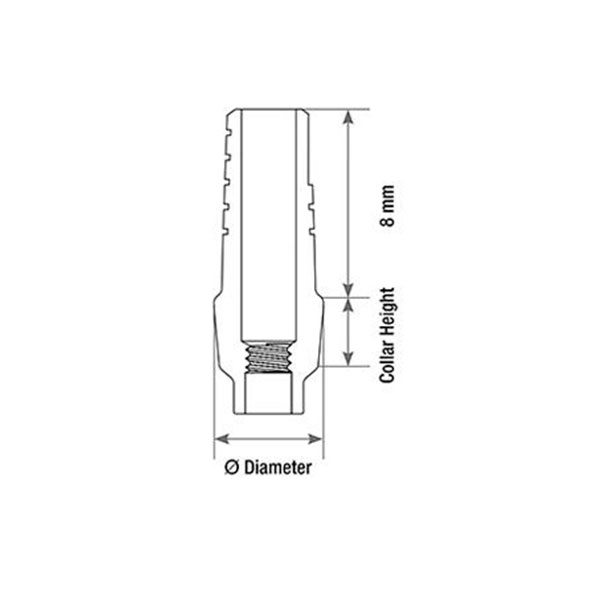

Straight Shoulder Abutment Narrow Platform 2.0

AbutmentHeightCollar HeightDiametrCode
7.5 mm1.0 mmØ 3.8 mmISSAS1
8.5 mm2.0 mmØ 3.8 mmISSAS2
9.5 mm3.0 mmØ 3.8 mmISSAS3
10.5 mm4.0 mmØ 3.8 mmISSAS4

Straight Shoulder Abutment Regular Platform

AbutmentHeightCollar HeightDiametrCode
9.0 mm1.0 mmØ 4.8 mmISTSA01
10.5 mm2.0 mmØ 4.8 mmISTSA02
11.5 mm3.0 mmØ 4.8 mmISTSA03
12.5 mm4.0 mmØ 4.8 mmISTSA04

Straight Smooth Abutment Regular Platform

AbutmentHeightDiametrCode
9.0 mmØ 3.8 mmISTA9SM
11.5 mmØ 3.8 mmISTA11SM

Straight Abutment Anatomic Aestchetic

AbutmentHeightCollar HeightDiametrCode
10.0 mm1.0 mmØ 4.8 mmISSA1
11.0 mm2.0 mmØ 4.8 mmISTA2
12.0 mm3.0 mmØ 4.8 mmISTA3
13.0 mm4.0 mmØ 4.8 mmISTA4

Straight Abutment Anatomic Concave

AbutmentHeightCollar HeightDiametrCode
9.0 mm1.0 mmØ 4.8 mmISAAC1
10.0 mm2.0 mmØ 4.8 mmISAAC2
11.0 mm3.0 mmØ 4.8 mmISAAC3
12.0 mm4.0 mmØ 4.8 mmISAAC4

Screw for Fixation of Internal Hex Abutments

ScrewHeightMaterialPlatformCode
5.1 mmTitaniumNarrow 2.0ISISC-N
5.1 mmTitaniumRegularIBLSC
5.1 mmTitaniumRegularISISC

Additional information

Variations

Straight Abutment Narrow Platform 2.0, Height: 9.0 mm, Diametr: Ø 3.8 mm, Straight Abutment Narrow Platform 2.0, Height: 11.0 mm, Diametr: Ø 3.8 mm, Straight Abutment Standard Platform, Height: 5.0 mm, Diametr: Ø 4.6 mm, Straight Abutment Standard Platform, Height: 9.0 mm, Diametr: Ø 4.6 mm, Straight Abutment Standard Platform, Height: 11.0 mm, Diametr: Ø 4.6 mm, Straight Abutment Wide Body, Height: 9.0 mm, Diametr: Ø 5.5 mm, Straight Abutment Wide Body, Height: 11.5 mm, Diametr: Ø 5.5 mm, Straight Shoulder Abutment Narrow Platform 2.0, Height: 7.5 mm, Collar Height: 1.0 mm, Diametr: Ø 3.8 mm, Straight Shoulder Abutment Narrow Platform 2.0, Height: 8.5 mm, Collar Height: 2.0 mm, Diametr: Ø 3.8 mm, Straight Shoulder Abutment Narrow Platform 2.0, Height: 9.5 mm, Collar Height: 3.0 mm, Diametr: Ø 3.8 mm, Straight Shoulder Abutment Narrow Platform 2.0, Height: 10.5 mm, Collar Height: 4.0 mm, Diametr: Ø 3.8 mm, Straight Shoulder Abutment Regular Platform, Height: 9.0 mm, Collar Height: 1.0 mm, Diametr: Ø 4.8 mm, Straight Shoulder Abutment Regular Platform, Height: 10.5 mm, Collar Height: 2.0 mm, Diametr: Ø 4.8 mm, Straight Shoulder Abutment Regular Platform, Height: 11.5 mm, Collar Height: 3.0 mm, Diametr: Ø 4.8 mm, Straight Shoulder Abutment Regular Platform, Height: 12.5 mm, Collar Height: 4.0 mm, Diametr: Ø 4.8 mm, Straight Smooth Abutment Regular Platform, Height: 9.0 mm, Diametr: Ø 3.8 mm, Straight Smooth Abutment Regular Platform, Height: 11.5 mm, Diametr: Ø 3.8 mm, Straight Abutment Anatomic Aestchetic, Height: 10.0 mm, Collar Height: 1.0 mm, Diametr: Ø 4.8 mm, Straight Abutment Anatomic Aestchetic, Height: 11.0 mm, Collar Height: 2.0 mm, Diametr: Ø 4.8 mm, Straight Abutment Anatomic Aestchetic, Height: 12.0 mm, Collar Height: 3.0 mm, Diametr: Ø 4.8 mm, Straight Abutment Anatomic Aestchetic, Height: 13.0 mm, Collar Height: 4.0 mm, Diametr: Ø 4.8 mm, Straight Abutment Anatomic Concave, Height: 9.0 mm, Collar Height: 1.0 mm, Diametr: Ø 4.8 mm, Straight Abutment Anatomic Concave, Height: 10.0 mm, Collar Height: 2.0 mm, Diametr: Ø 4.8 mm, Straight Abutment Anatomic Concave, Height: 11.0 mm, Collar Height: 3.0 mm, Diametr: Ø 4.8 mm, Straight Abutment Anatomic Concave, Height: 12.0 mm, Collar Height: 4.0 mm, Diametr: Ø 4.8 mm, Screw for Fixation of Internal Hex Abutments, Height: 5.1 mm, Material: Titanium, Platform: Narrow 2.0, Screw for Fixation of Internal Hex Abutments, Height: 5.1 mm, Material: Titanium, Platform: Regular, Screw for Fixation of Internal Hex Abutments, Height: 5.1 mm, Material: Titanium, Platform: Regular
